在Nginx上配置HTTPS证书的完整指南
更新时间：2026年04月23日 08:54:51 作者：知远漫谈
在当今互联网环境中,HTTPS 已经成为网站标配,无论是个人博客、企业官网还是 API 服务,启用 HTTPS 不仅能提升用户信任度,还能增强数据安全性,甚至影响搜索引擎排名,本文将详细介绍如何在 Nginx 中配置 HTTPS 证书,需要的朋友可以参考下
引言
在当今互联网环境中，HTTPS 已经成为网站标配。无论是个人博客、企业官网还是 API 服务，启用 HTTPS 不仅能提升用户信任度，还能增强数据安全性，甚至影响搜索引擎排名。Nginx 作为高性能的 Web 服务器和反向代理，是部署 HTTPS 的理想选择。本文将详细介绍如何在 Nginx 中配置 HTTPS 证书，涵盖自签名证书、Let’s Encrypt 免费证书、商业证书等多种方案，并提供 Java 应用集成示例。
为什么需要 HTTPS？
在深入配置之前，让我们先理解为什么 HTTPS 如此重要：
- 数据加密：防止中间人攻击，保护用户隐私
- 身份验证：确保用户访问的是真实的网站而非钓鱼网站
- 完整性保护：防止数据在传输过程中被篡改
- SEO 优势：Google 等搜索引擎优先收录 HTTPS 网站
- 现代浏览器要求：Chrome 等浏览器对 HTTP 网站标记为"不安全"
// Java 示例：检测 HTTP/HTTPS 请求
import javax.servlet.http.HttpServletRequest;
public class SecurityUtils {
public static boolean isSecureRequest(HttpServletRequest request) {
// 检查请求是否通过 HTTPS
if ("https".equals(request.getScheme())) {
return true;
}
// 检查 X-Forwarded-Proto 头（当使用反向代理时）
String forwardedProto = request.getHeader("X-Forwarded-Proto");
return "https".equals(forwardedProto);
}
public static String getSecureUrl(HttpServletRequest request) {
if (isSecureRequest(request)) {
return request.getRequestURL().toString();
} else {
// 将 HTTP URL 转换为 HTTPS
String url = request.getRequestURL().toString();
return url.replaceFirst("http://", "https://");
}
}
}准备工作
在配置 HTTPS 之前，确保你已准备好以下内容：
- 域名：拥有一个已备案的域名（国内服务器需要）
- 服务器：安装了 Nginx 的 Linux 服务器
- SSH 访问权限：能够通过 SSH 连接到服务器
- 防火墙配置：开放 443 端口
检查 Nginx 是否已安装：
nginx -v
如果未安装，可以使用以下命令安装：
# Ubuntu/Debian sudo apt update sudo apt install nginx # CentOS/RHEL sudo yum install epel-release sudo yum install nginx
方案一：自签名证书（开发测试环境）
自签名证书适合开发和测试环境，但在生产环境中浏览器会显示安全警告。
生成自签名证书
# 创建证书目录
sudo mkdir -p /etc/nginx/ssl
# 生成私钥和自签名证书
sudo openssl req -x509 -nodes -days 365 -newkey rsa:2048 \
-keyout /etc/nginx/ssl/selfsigned.key \
-out /etc/nginx/ssl/selfsigned.crt \
-subj "/C=CN/ST=Beijing/L=Beijing/O=MyCompany/CN=example.com"配置 Nginx 使用自签名证书
编辑 Nginx 配置文件：
sudo nano /etc/nginx/sites-available/example.com
server {
listen 443 ssl;
server_name example.com www.example.com;
# SSL 配置
ssl_certificate /etc/nginx/ssl/selfsigned.crt;
ssl_certificate_key /etc/nginx/ssl/selfsigned.key;
# SSL 安全设置
ssl_protocols TLSv1.2 TLSv1.3;
ssl_ciphers ECDHE-RSA-AES256-GCM-SHA512:DHE-RSA-AES256-GCM-SHA512:ECDHE-RSA-AES256-GCM-SHA384:DHE-RSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-SHA384;
ssl_prefer_server_ciphers on;
ssl_session_cache shared:SSL:10m;
ssl_session_timeout 10m;
# 根目录和索引文件
root /var/www/html;
index index.html index.htm;
location / {
try_files $uri $uri/ =404;
}
}
# HTTP 到 HTTPS 重定向
server {
listen 80;
server_name example.com www.example.com;
return 301 https://$server_name$request_uri;
}启用配置并重启 Nginx
# 创建符号链接 sudo ln -s /etc/nginx/sites-available/example.com /etc/nginx/sites-enabled/ # 测试配置 sudo nginx -t # 重启 Nginx sudo systemctl restart nginx
// Java 示例：Spring Boot 应用中强制 HTTPS
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
@Configuration
public class SecurityConfig extends WebSecurityConfigurerAdapter {
@Override
protected void configure(HttpSecurity http) throws Exception {
http
.requiresChannel()
.requestMatchers(r -> r.getHeader("X-Forwarded-Proto") != null)
.requiresSecure()
.and()
.authorizeRequests()
.anyRequest().permitAll();
}
}方案二：Let’s Encrypt 免费证书（生产环境推荐）
Let’s Encrypt 提供免费的 SSL/TLS 证书，有效期 90 天，支持自动续期。
安装 Certbot
# Ubuntu/Debian sudo apt update sudo apt install certbot python3-certbot-nginx # CentOS/RHEL 7 sudo yum install epel-release sudo yum install certbot python3-certbot-nginx # CentOS/RHEL 8+ sudo dnf install certbot python3-certbot-nginx
获取证书
# 自动获取并配置证书 sudo certbot --nginx -d example.com -d www.example.com # 或者仅获取证书（手动配置） sudo certbot certonly --nginx -d example.com -d www.example.com
Certbot 会自动修改你的 Nginx 配置文件，添加 SSL 相关配置。
手动配置 Let’s Encrypt 证书
如果你选择手动配置，证书文件通常位于：
- 证书文件：
/etc/letsencrypt/live/example.com/fullchain.pem - 私钥文件：
/etc/letsencrypt/live/example.com/privkey.pem
server {
listen 443 ssl http2;
listen [::]:443 ssl http2;
server_name example.com www.example.com;
# Let's Encrypt 证书
ssl_certificate /etc/letsencrypt/live/example.com/fullchain.pem;
ssl_certificate_key /etc/letsencrypt/live/example.com/privkey.pem;
# SSL 安全强化配置
ssl_protocols TLSv1.2 TLSv1.3;
ssl_ciphers ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:DHE-RSA-AES128-GCM-SHA256:DHE-RSA-AES256-GCM-SHA384;
ssl_prefer_server_ciphers off;
# OCSP Stapling
ssl_stapling on;
ssl_stapling_verify on;
resolver 8.8.8.8 8.8.4.4 valid=300s;
resolver_timeout 5s;
# HSTS (HTTP Strict Transport Security)
add_header Strict-Transport-Security "max-age=63072000; includeSubDomains; preload" always;
# 其他安全头
add_header X-Frame-Options DENY;
add_header X-Content-Type-Options nosniff;
add_header X-XSS-Protection "1; mode=block";
# 根目录
root /var/www/html;
index index.html index.htm;
location / {
try_files $uri $uri/ =404;
}
}
# HTTP 到 HTTPS 重定向
server {
listen 80;
listen [::]:80;
server_name example.com www.example.com;
return 301 https://$server_name$request_uri;
}自动续期配置
Let’s Encrypt 证书每 90 天需要续期一次。Certbot 可以自动处理：
# 测试续期（不会实际执行） sudo certbot renew --dry-run # 设置定时任务自动续期 sudo crontab -e
添加以下行（每天凌晨 2 点检查是否需要续期）：
0 2 * * * /usr/bin/certbot renew --quiet --post-hook "systemctl reload nginx"
// Java 示例：Spring Boot 应用中的 HTTPS 相关配置
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.boot.web.embedded.tomcat.TomcatServletWebServerFactory;
import org.springframework.boot.web.server.Ssl;
import org.springframework.boot.web.server.WebServerFactoryCustomizer;
@Configuration
public class HttpsConfig {
@Value("${server.ssl.enabled:false}")
private boolean sslEnabled;
@Value("${server.ssl.key-store:}")
private String keyStore;
@Value("${server.ssl.key-store-password:}")
private String keyStorePassword;
@Bean
public WebServerFactoryCustomizer<TomcatServletWebServerFactory> containerCustomizer() {
return factory -> {
if (sslEnabled && !keyStore.isEmpty()) {
Ssl ssl = new Ssl();
ssl.setKeyStore(keyStore);
ssl.setKeyStorePassword(keyStorePassword);
ssl.setKeyAlias("tomcat");
factory.setSsl(ssl);
}
};
}
}方案三：商业证书（企业级应用）
对于企业级应用，可能需要购买商业 SSL 证书，如 DigiCert、GeoTrust、Symantec 等。
申请商业证书流程
- 生成 CSR（Certificate Signing Request）
# 生成私钥 openssl genrsa -out example.com.key 2048 # 生成 CSR openssl req -new -key example.com.key -out example.com.csr
- 提交 CSR 到证书颁发机构
- 验证域名所有权
- 下载证书文件
配置商业证书
商业证书通常包含多个文件：
- 主证书：
example.com.crt - 中间证书：
intermediate.crt - 根证书：
root.crt
需要将它们合并成一个文件：
cat example.com.crt intermediate.crt root.crt > fullchain.crt
server {
listen 443 ssl http2;
server_name example.com www.example.com;
# 商业证书配置
ssl_certificate /etc/nginx/ssl/fullchain.crt;
ssl_certificate_key /etc/nginx/ssl/example.com.key;
# 高级 SSL 配置
ssl_protocols TLSv1.2 TLSv1.3;
ssl_ciphers 'ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256';
ssl_prefer_server_ciphers off;
ssl_ecdh_curve secp384r1;
ssl_session_cache shared:SSL:10m;
ssl_session_timeout 10m;
ssl_session_tickets off;
# OCSP Stapling
ssl_stapling on;
ssl_stapling_verify on;
ssl_trusted_certificate /etc/nginx/ssl/fullchain.crt;
resolver 8.8.8.8 8.8.4.4 valid=300s;
resolver_timeout 5s;
# HSTS
add_header Strict-Transport-Security "max-age=63072000; includeSubDomains; preload" always;
# 安全头
add_header X-Frame-Options SAMEORIGIN;
add_header X-Content-Type-Options nosniff;
add_header X-XSS-Protection "1; mode=block";
add_header Referrer-Policy "strict-origin-when-cross-origin";
add_header Content-Security-Policy "default-src 'self'; script-src 'self' 'unsafe-inline' 'unsafe-eval'; style-src 'self' 'unsafe-inline'; img-src 'self' data:; font-src 'self'; connect-src 'self'; frame-src 'none';";
# Gzip 压缩
gzip on;
gzip_vary on;
gzip_min_length 1024;
gzip_types text/plain text/css application/json application/javascript text/xml application/xml application/xml+rss text/javascript;
# 根目录
root /var/www/html;
index index.html index.htm;
location / {
try_files $uri $uri/ =404;
}
# 静态资源缓存
location ~* \.(jpg|jpeg|png|gif|ico|css|js)$ {
expires 1y;
add_header Cache-Control "public, immutable";
}
}HTTP 到 HTTPS 重定向的最佳实践
确保所有 HTTP 请求都被重定向到 HTTPS：
# 方法一：简单的 301 重定向
server {
listen 80;
server_name example.com www.example.com;
return 301 https://$server_name$request_uri;
}
# 方法二：保留原始请求路径和参数
server {
listen 80;
server_name example.com www.example.com;
return 301 https://$host$request_uri;
}
# 方法三：针对特定路径的重定向
server {
listen 80;
server_name example.com www.example.com;
location /admin {
return 301 https://$server_name$request_uri;
}
location /api {
return 301 https://$server_name$request_uri;
}
# 其他路径可以保持 HTTP（不推荐）
location / {
# 继续使用 HTTP
root /var/www/html;
index index.html;
}
}// Java 示例：Servlet Filter 强制 HTTPS
import javax.servlet.*;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
public class HttpsEnforcementFilter implements Filter {
@Override
public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
throws IOException, ServletException {
HttpServletRequest httpRequest = (HttpServletRequest) request;
HttpServletResponse httpResponse = (HttpServletResponse) response;
// 检查是否为 HTTPS 请求
if (!"https".equals(httpRequest.getScheme()) &&
!"https".equals(httpRequest.getHeader("X-Forwarded-Proto"))) {
// 构建 HTTPS URL
StringBuilder httpsUrl = new StringBuilder("https://");
httpsUrl.append(httpRequest.getServerName());
// 添加端口（如果不是默认的 443）
int port = httpRequest.getServerPort();
if (port != 80 && port != 443) {
httpsUrl.append(":").append(port);
}
httpsUrl.append(httpRequest.getRequestURI());
// 添加查询字符串
String queryString = httpRequest.getQueryString();
if (queryString != null) {
httpsUrl.append("?").append(queryString);
}
// 重定向到 HTTPS
httpResponse.setStatus(HttpServletResponse.SC_MOVED_PERMANENTLY);
httpResponse.setHeader("Location", httpsUrl.toString());
return;
}
chain.doFilter(request, response);
}

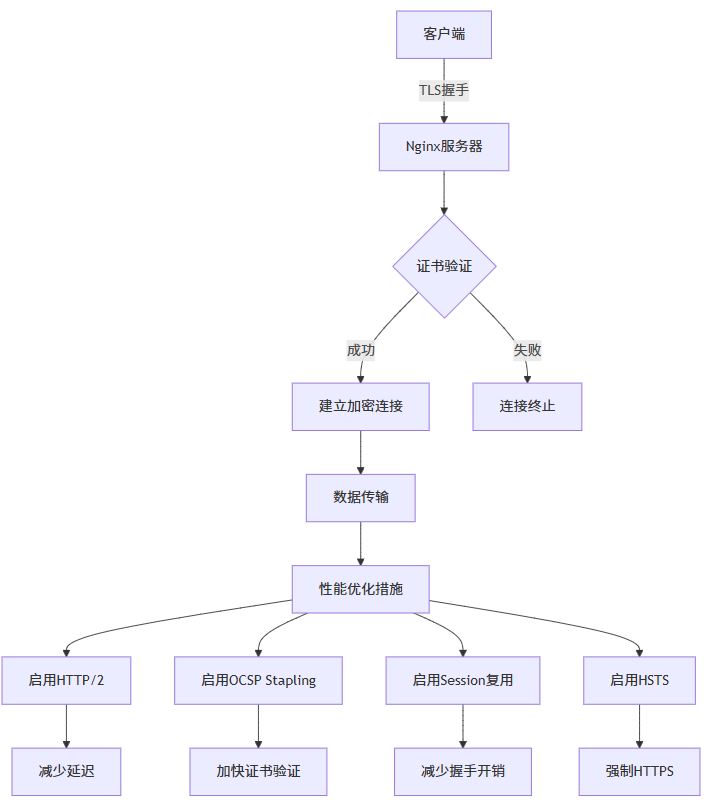

}SSL/TLS 性能优化
启用 HTTP/2
HTTP/2 可以显著提升 HTTPS 网站性能：
server {
listen 443 ssl http2;
listen [::]:443 ssl http2;
# ... 其他配置
}Session 复用配置
# SSL Session 缓存 ssl_session_cache shared:SSL:10m; ssl_session_timeout 1h; ssl_session_tickets on; ssl_session_ticket_key /etc/nginx/ssl/ticket.key; # 生成 ticket key openssl rand 48 > /etc/nginx/ssl/ticket.key
SSL 缓冲区优化
# SSL 缓冲区大小 ssl_buffer_size 4k; # SSL 预读 ssl_preread on;
安全加固配置
SSL 协议和加密套件
# 推荐的安全配置 ssl_protocols TLSv1.2 TLSv1.3; ssl_ciphers 'TLS_AES_128_GCM_SHA256:TLS_AES_256_GCM_SHA384:TLS_CHACHA20_POLY1305_SHA256:ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305'; ssl_prefer_server_ciphers off;
HSTS (HTTP Strict Transport Security)
# 严格的 HSTS 配置 add_header Strict-Transport-Security "max-age=63072000; includeSubDomains; preload" always;
CSP (Content Security Policy)
# 严格的内容安全策略 add_header Content-Security-Policy "default-src 'self'; script-src 'self' 'unsafe-inline' 'unsafe-eval' https://cdn.example.com; style-src 'self' 'unsafe-inline' https://cdn.example.com; img-src 'self' data: https://*.example.com; font-src 'self' https://fonts.gstatic.com; connect-src 'self' https://api.example.com; frame-src 'none'; object-src 'none';" always;
// Java 示例：Spring Security 中的 HTTPS 配置
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.web.SecurityFilterChain;
@Configuration
@EnableWebSecurity
public class WebSecurityConfig {
@Bean
public SecurityFilterChain filterChain(HttpSecurity http) throws Exception {
http
.requiresChannel(channel ->
channel.anyRequest().requiresSecure()
)
.headers(headers ->
headers
.httpStrictTransportSecurity(hsts ->
hsts
.maxAgeInSeconds(63072000)
.includeSubdomains(true)
.preload(true)
)
.frameOptions(frame -> frame.deny())
.contentTypeOptions(contentType -> contentType.disable())
.xssProtection(xss -> xss.block(false))
)
.authorizeHttpRequests(authz ->
authz.anyRequest().permitAll()
);
return http.build();
}
}Docker 环境下的 HTTPS 配置
在 Docker 环境中配置 HTTPS 有其特殊性：
Docker Compose 配置
version: '3.8'
services:
nginx:
image: nginx:latest
ports:
- "80:80"
- "443:443"
volumes:
- ./nginx.conf:/etc/nginx/nginx.conf
- ./ssl:/etc/nginx/ssl
- ./html:/usr/share/nginx/html
restart: unless-stopped
app:
image: my-java-app:latest
expose:
- "8080"
environment:
- SERVER_SSL_ENABLED=true
- SERVER_PORT=8080
restart: unless-stoppedNginx 配置文件
events {
worker_connections 1024;
}
http {
upstream backend {
server app:8080;
}
server {
listen 443 ssl http2;
server_name example.com;
ssl_certificate /etc/nginx/ssl/fullchain.pem;
ssl_certificate_key /etc/nginx/ssl/privkey.pem;
ssl_protocols TLSv1.2 TLSv1.3;
ssl_ciphers HIGH:!aNULL:!MD5;
location / {
proxy_pass http://backend;
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;
}
}
server {
listen 80;
server_name example.com;
return 301 https://$server_name$request_uri;
}
}Java 应用配置
// Java 示例：Docker 环境中的 HTTPS 检测
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
import javax.servlet.http.HttpServletRequest;
@SpringBootApplication
public class DockerHttpsApplication {
public static void main(String[] args) {
SpringApplication.run(DockerHttpsApplication.class, args);
}
}
@RestController
class HealthController {
@GetMapping("/health")
public HealthStatus healthCheck(HttpServletRequest request) {
return new HealthStatus(
"UP",
request.getScheme(),
request.getServerPort(),
request.getHeader("X-Forwarded-Proto"),
System.getenv("SERVER_SSL_ENABLED")
);
}
static class HealthStatus {
private final String status;
private final String scheme;
private final int port;
private final String forwardedProto;
private final String sslEnabled;
public HealthStatus(String status, String scheme, int port, String forwardedProto, String sslEnabled) {
this.status = status;
this.scheme = scheme;
this.port = port;
this.forwardedProto = forwardedProto;
this.sslEnabled = sslEnabled;
}
// getters...
}
}证书续期和监控
自动化续期脚本
#!/bin/bash
# ssl-renew.sh
LOG_FILE="/var/log/ssl-renew.log"
DATE=$(date '+%Y-%m-%d %H:%M:%S')
echo "[$DATE] 开始检查 SSL 证书续期..." >> $LOG_FILE
# 检查 Let's Encrypt 证书
if command -v certbot &> /dev/null; then
echo "[$DATE] 检查 Let's Encrypt 证书..." >> $LOG_FILE
certbot renew --quiet --post-hook "systemctl reload nginx" >> $LOG_FILE 2>&1
if [ $? -eq 0 ]; then
echo "[$DATE] Let's Encrypt 证书续期成功" >> $LOG_FILE
else
echo "[$DATE] Let's Encrypt 证书续期失败" >> $LOG_FILE
fi
fi
# 检查证书到期时间
for cert in /etc/nginx/ssl/*.crt /etc/letsencrypt/live/*/fullchain.pem; do
if [ -f "$cert" ]; then
EXPIRY_DATE=$(openssl x509 -enddate -noout -in "$cert" | cut -d= -f2)
DAYS_LEFT=$(echo "$EXPIRY_DATE" | xargs -I {} date -d {} +%s | xargs -I {} echo $(( ({} - $(date +%s)) / 86400 )))
echo "[$DATE] 证书 $cert 到期时间: $EXPIRY_DATE (剩余 $DAYS_LEFT 天)" >> $LOG_FILE
# 如果少于 30 天，发送警告
if [ $DAYS_LEFT -lt 30 ] && [ $DAYS_LEFT -gt 0 ]; then
echo "[$DATE] 警告: 证书 $cert 即将在 $DAYS_LEFT 天后过期!" >> $LOG_FILE
# 这里可以添加邮件或短信通知逻辑
fi
fi
done
echo "[$DATE] SSL 证书检查完成" >> $LOG_FILE
echo "=========================================" >> $LOG_FILE证书监控 Java 类
// Java 示例：证书到期监控
import java.io.File;
import java.io.FileInputStream;
import java.math.BigInteger;
import java.security.cert.CertificateFactory;
import java.security.cert.X509Certificate;
import java.time.Instant;
import java.time.ZoneId;
import java.time.format.DateTimeFormatter;
import java.util.Date;
public class CertificateMonitor {
private static final DateTimeFormatter DATE_FORMATTER =
DateTimeFormatter.ofPattern("yyyy-MM-dd HH:mm:ss").withZone(ZoneId.systemDefault());
public static CertificateInfo checkCertificate(String certPath) {
try {
File certFile = new File(certPath);
if (!certFile.exists()) {
return new CertificateInfo(certPath, false, "文件不存在", 0, null, null);
}
CertificateFactory cf = CertificateFactory.getInstance("X.509");
X509Certificate cert = (X509Certificate) cf.generateCertificate(new FileInputStream(certFile));
Date notBefore = cert.getNotBefore();
Date notAfter = cert.getNotAfter();
long daysLeft = (notAfter.getTime() - System.currentTimeMillis()) / (24 * 60 * 60 * 1000);
boolean isValid = daysLeft > 0;
String status = isValid ? "有效" : "已过期";
if (isValid && daysLeft < 30) {
status = "即将过期 (" + daysLeft + "天)";
}
return new CertificateInfo(
certPath,
isValid,
status,
daysLeft,
DATE_FORMATTER.format(notBefore.toInstant()),
DATE_FORMATTER.format(notAfter.toInstant())
);
} catch (Exception e) {
return new CertificateInfo(certPath, false, "解析错误: " + e.getMessage(), 0, null, null);
}
}
public static class CertificateInfo {
private final String path;
private final boolean valid;
private final String status;
private final long daysLeft;
private final String notBefore;
private final String notAfter;
public CertificateInfo(String path, boolean valid, String status, long daysLeft, String notBefore, String notAfter) {
this.path = path;
this.valid = valid;
this.status = status;
this.daysLeft = daysLeft;
this.notBefore = notBefore;
this.notAfter = notAfter;
}
// Getters...
public String getPath() { return path; }
public boolean isValid() { return valid; }
public String getStatus() { return status; }
public long getDaysLeft() { return daysLeft; }
public String getNotBefore() { return notBefore; }
public String getNotAfter() { return notAfter; }
@Override
public String toString() {
return String.format(
"证书: %s\n状态: %s\n有效期: %s 至 %s\n剩余天数: %d",
path, status, notBefore, notAfter, daysLeft
);
}
}
// 使用示例
public static void main(String[] args) {
String[] certPaths = {
"/etc/letsencrypt/live/example.com/fullchain.pem",
"/etc/nginx/ssl/selfsigned.crt"
};
for (String certPath : certPaths) {
CertificateInfo info = checkCertificate(certPath);
System.out.println(info);
System.out.println("---");
}
}
}高级配置：多域名和通配符证书
多域名证书配置
# 多域名服务器块
server {
listen 443 ssl http2;
server_name example.com www.example.com blog.example.com shop.example.com;
ssl_certificate /etc/nginx/ssl/multidomain.crt;
ssl_certificate_key /etc/nginx/ssl/multidomain.key;
# ... 其他 SSL 配置
location / {
root /var/www/example;
index index.html;
}
}
# 为不同子域名单独配置
server {
listen 443 ssl http2;
server_name api.example.com;
ssl_certificate /etc/nginx/ssl/api.crt;
ssl_certificate_key /etc/nginx/ssl/api.key;
# API 特定配置
client_max_body_size 50M;
proxy_read_timeout 300s;
location / {
proxy_pass http://localhost:8080;
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
}
}通配符证书配置
# 使用 Certbot 获取通配符证书 sudo certbot certonly --manual --preferred-challenges=dns -d *.example.com -d example.com
# 通配符证书配置
server {
listen 443 ssl http2;
server_name *.example.com example.com;
ssl_certificate /etc/letsencrypt/live/example.com/fullchain.pem;
ssl_certificate_key /etc/letsencrypt/live/example.com/privkey.pem;
# 动态根目录基于子域名
set $root_path "/var/www/default";
if ($host ~* ^([a-z0-9-]+)\.example\.com$) {
set $subdomain $1;
set $root_path "/var/www/$subdomain";
}
root $root_path;
index index.html index.htm;
location / {
try_files $uri $uri/ =404;
}
}// Java 示例：基于子域名的动态路由
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
import javax.servlet.http.HttpServletRequest;
@RestController
public class SubdomainController {
@GetMapping("/")
public SubdomainResponse handleSubdomainRequest(HttpServletRequest request) {
String host = request.getHeader("Host");
String subdomain = extractSubdomain(host);
return new SubdomainResponse(
host,
subdomain,
getSiteContent(subdomain),
request.getScheme(),
request.isSecure()
);
}
private String extractSubdomain(String host) {
if (host == null) return "unknown";
// 移除端口号
if (host.contains(":")) {
host = host.substring(0, host.indexOf(":"));
}
// 提取子域名
String domain = "example.com"; // 你的主域名
if (host.endsWith("." + domain)) {
return host.substring(0, host.length() - domain.length() - 1);
}
return "www"; // 默认子域名
}
private String getSiteContent(String subdomain) {
switch (subdomain.toLowerCase()) {
case "blog":
return "博客内容";
case "shop":
return "商店内容";
case "api":
return "API 文档";
default:
return "主页内容";
}
}
static class SubdomainResponse {
private final String host;
private final String subdomain;
private final String content;
private final String scheme;
private final boolean secure;
public SubdomainResponse(String host, String subdomain, String content, String scheme, boolean secure) {
this.host = host;
this.subdomain = subdomain;
this.content = content;
this.scheme = scheme;
this.secure = secure;
}
// Getters...
}
}Java 应用与 HTTPS 集成
Spring Boot HTTPS 配置
// Java 示例：Spring Boot 内置 HTTPS
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.Bean;
import org.springframework.boot.web.embedded.tomcat.TomcatServletWebServerFactory;
import org.springframework.boot.web.server.Ssl;
@SpringBootApplication
public class SecureApplication {
public static void main(String[] args) {
SpringApplication.run(SecureApplication.class, args);
}
@Bean
public TomcatServletWebServerFactory servletContainer() {
TomcatServletWebServerFactory tomcat = new TomcatServletWebServerFactory();
// 配置 SSL
Ssl ssl = new Ssl();
ssl.setKeyStore("classpath:keystore.p12");
ssl.setKeyStorePassword("changeit");
ssl.setKeyStoreType("PKCS12");
ssl.setKeyAlias("tomcat");
ssl.setEnabled(true);
tomcat.setSsl(ssl);
tomcat.setPort(8443);
return tomcat;
}
}application.properties 配置
# HTTPS 配置 server.port=8443 server.ssl.enabled=true server.ssl.key-store=classpath:keystore.p12 server.ssl.key-store-password=changeit server.ssl.key-store-type=PKCS12 server.ssl.key-alias=tomcat # HTTP 重定向到 HTTPS server.http.port=8080 # 安全头配置 server.servlet.session.cookie.secure=true server.servlet.session.cookie.http-only=true server.servlet.session.cookie.same-site=strict
REST API HTTPS 客户端配置
// Java 示例：HTTPS REST 客户端
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.client.HttpComponentsClientHttpRequestFactory;
import org.springframework.web.client.RestTemplate;
import javax.net.ssl.*;
import java.security.KeyManagementException;
import java.security.NoSuchAlgorithmException;
import java.security.cert.X509Certificate;
@Configuration
public class RestClientConfig {
@Bean
public RestTemplate restTemplate() throws KeyManagementException, NoSuchAlgorithmException {
// 创建信任所有证书的 SSL 上下文（仅用于测试！）
TrustManager[] trustAllCerts = new TrustManager[]{
new X509TrustManager() {
public X509Certificate[] getAcceptedIssuers() {
return null;
}
public void checkClientTrusted(X509Certificate[] certs, String authType) {}
public void checkServerTrusted(X509Certificate[] certs, String authType) {}
}
};
SSLContext sslContext = SSLContext.getInstance("TLS");
sslContext.init(null, trustAllCerts, new java.security.SecureRandom());
// 创建 HttpClient
org.apache.http.impl.client.CloseableHttpClient httpClient =
org.apache.http.impl.client.HttpClients.custom()
.setSSLContext(sslContext)
.build();
HttpComponentsClientHttpRequestFactory requestFactory =
new HttpComponentsClientHttpRequestFactory();
requestFactory.setHttpClient(httpClient);
return new RestTemplate(requestFactory);
}
// 生产环境安全的 REST 客户端
@Bean
public RestTemplate secureRestTemplate() {
// 使用系统默认的信任库
HttpComponentsClientHttpRequestFactory requestFactory =
new HttpComponentsClientHttpRequestFactory();
return new RestTemplate(requestFactory);
}
}性能监控和日志分析
Nginx 日志配置
# HTTPS 访问日志格式
log_format ssl_log '$time_local | $scheme | $status | $request_method | '
'"$request" | $body_bytes_sent | '
'"$http_referer" | "$http_user_agent" | '
'$ssl_protocol | $ssl_cipher | $ssl_session_reused';
server {
listen 443 ssl http2;
server_name example.com;
# SSL 专用访问日志
access_log /var/log/nginx/ssl-access.log ssl_log;
error_log /var/log/nginx/ssl-error.log;
# ... 其他配置
}Java 监控类
// Java 示例：HTTPS 性能监控
import org.springframework.stereotype.Component;
import javax.servlet.*;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.time.Duration;
import java.time.Instant;
import java.util.concurrent.ConcurrentHashMap;
import java.util.concurrent.atomic.AtomicLong;
@Component
public class HttpsPerformanceFilter implements Filter {
private final ConcurrentHashMap<String, RequestStats> statsMap = new ConcurrentHashMap<>();
private final AtomicLong totalRequests = new AtomicLong(0);
private final AtomicLong httpsRequests = new AtomicLong(0);
@Override
public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
throws IOException, ServletException {
HttpServletRequest httpRequest = (HttpServletRequest) request;
HttpServletResponse httpResponse = (HttpServletResponse) response;
String requestKey = httpRequest.getMethod() + " " + httpRequest.getRequestURI();
Instant startTime = Instant.now();
// 记录请求总数
totalRequests.incrementAndGet();
// 记录 HTTPS 请求数
if ("https".equals(httpRequest.getScheme()) ||
"https".equals(httpRequest.getHeader("X-Forwarded-Proto"))) {
httpsRequests.incrementAndGet();
}
try {
chain.doFilter(request, response);
} finally {
Duration duration = Duration.between(startTime, Instant.now());
updateStats(requestKey, duration.toMillis(), httpResponse.getStatus());
}
}
private void updateStats(String key, long durationMs, int statusCode) {
statsMap.compute(key, (k, v) -> {
if (v == null) {
return new RequestStats(durationMs, statusCode);
} else {
v.addRequest(durationMs, statusCode);
return v;
}
});
}
public PerformanceReport getPerformanceReport() {
return new PerformanceReport(
totalRequests.get(),
httpsRequests.get(),
statsMap.size(),
calculateAverageResponseTime(),
calculateHttpsPercentage()
);
}
private double calculateAverageResponseTime() {
long totalDuration = statsMap.values().stream()
.mapToLong(RequestStats::getTotalDuration)
.sum();
long totalCount = statsMap.values().stream()
.mapToLong(RequestStats::getRequestCount)
.sum();
return totalCount > 0 ? (double) totalDuration / totalCount : 0.0;
}
private double calculateHttpsPercentage() {
long total = totalRequests.get();
return total > 0 ? (double) httpsRequests.get() / total * 100 : 0.0;
}
static class RequestStats {
private long totalDuration;
private long requestCount;
private int successCount;
private long maxDuration;
private long minDuration = Long.MAX_VALUE;
public RequestStats(long duration, int statusCode) {
this.totalDuration = duration;
this.requestCount = 1;
this.successCount = statusCode >= 200 && statusCode < 300 ? 1 : 0;
this.maxDuration = duration;
this.minDuration = duration;
}
public void addRequest(long duration, int statusCode) {
this.totalDuration += duration;
this.requestCount++;
if (statusCode >= 200 && statusCode < 300) {
this.successCount++;
}
this.maxDuration = Math.max(this.maxDuration, duration);
this.minDuration = Math.min(this.minDuration, duration);
}
// Getters...
public long getTotalDuration() { return totalDuration; }
public long getRequestCount() { return requestCount; }
public int getSuccessCount() { return successCount; }
public long getMaxDuration() { return maxDuration; }
public long getMinDuration() { return minDuration; }
public double getAverageDuration() {
return requestCount > 0 ? (double) totalDuration / requestCount : 0.0;
}
public double getSuccessRate() {
return requestCount > 0 ? (double) successCount / requestCount * 100 : 0.0;
}
}
public static class PerformanceReport {
private final long totalRequests;
private final long httpsRequests;
private final int endpointCount;
private final double averageResponseTime;
private final double httpsPercentage;
public PerformanceReport(long totalRequests, long httpsRequests, int endpointCount,
double averageResponseTime, double httpsPercentage) {
this.totalRequests = totalRequests;
this.httpsRequests = httpsRequests;
this.endpointCount = endpointCount;
this.averageResponseTime = averageResponseTime;
this.httpsPercentage = httpsPercentage;
}
// Getters...
public long getTotalRequests() { return totalRequests; }
public long getHttpsRequests() { return httpsRequests; }
public int getEndpointCount() { return endpointCount; }
public double getAverageResponseTime() { return averageResponseTime; }
public double getHttpsPercentage() { return httpsPercentage; }
@Override
public String toString() {
return String.format(
"性能报告:\n" +
"总请求数: %d\n" +
"HTTPS 请求数: %d (%.2f%%)\n" +
"端点数量: %d\n" +
"平均响应时间: %.2fms\n",
totalRequests, httpsRequests, httpsPercentage,
endpointCount, averageResponseTime
);
}
}
}故障排除和常见问题
证书链问题
# 检查证书链 openssl s_client -connect example.com:443 -showcerts # 验证证书链完整性 openssl verify -CAfile /path/to/ca-bundle.crt /path/to/your/certificate.crt
SSL/TLS 握手失败
# 调试 SSL 配置 ssl_buffer_size 16k; ssl_session_tickets off; # 更宽松的加密套件（仅用于调试） ssl_ciphers HIGH:!aNULL:!MD5;
Java 应用 HTTPS 问题排查
// Java 示例：SSL/TLS 调试工具
import javax.net.ssl.*;
import java.io.IOException;
import java.net.URL;
import java.security.cert.X509Certificate;
public class SSLDebugTool {
public static void enableSSLDebugging() {
// 启用 SSL 调试
System.setProperty("javax.net.debug", "ssl:handshake:verbose");
// 创建信任所有证书的 SSL 上下文（仅用于调试！）
try {
TrustManager[] trustAllCerts = new TrustManager[]{
new X509TrustManager() {
public X509Certificate[] getAcceptedIssuers() { return null; }
public void checkClientTrusted(X509Certificate[] certs, String authType) {}
public void checkServerTrusted(X509Certificate[] certs, String authType) {}
}
};
SSLContext sc = SSLContext.getInstance("TLS");
sc.init(null, trustAllCerts, new java.security.SecureRandom());
HttpsURLConnection.setDefaultSSLSocketFactory(sc.getSocketFactory());
// 创建所有主机都信任的主机名验证器
HostnameVerifier allHostsValid = (hostname, session) -> true;
HttpsURLConnection.setDefaultHostnameVerifier(allHostsValid);
} catch (Exception e) {
e.printStackTrace();
}
}
public static void testConnection(String urlString) {
try {
URL url = new URL(urlString);
HttpsURLConnection connection = (HttpsURLConnection) url.openConnection();
System.out.println("正在测试连接: " + urlString);
int responseCode = connection.getResponseCode();
System.out.println("响应码: " + responseCode);
System.out.println("响应消息: " + connection.getResponseMessage());
SSLSession session = connection.getSSLSession();
if (session != null) {
System.out.println("SSL 协议: " + session.getProtocol());
System.out.println("SSL 密码套件: " + session.getCipherSuite());
System.out.println("对等证书数量: " + session.getPeerCertificates().length);
}
connection.disconnect();
} catch (IOException e) {
System.err.println("连接失败: " + e.getMessage());
e.printStackTrace();
}
}
public static void main(String[] args) {
// 启用调试（生产环境不要使用！）
enableSSLDebugging();
// 测试连接
testConnection("https://example.com");
}
}最佳实践总结
- 始终使用 HTTPS：即使是内部应用也应该使用 HTTPS
- 定期更新证书：设置提醒和自动化续期
- 使用强加密：禁用旧的 SSL/TLS 版本和弱加密套件
- 启用 HSTS：强制浏览器使用 HTTPS
- 监控证书到期：提前 30 天收到续期提醒
- 备份私钥：安全存储私钥，避免丢失
- 测试配置：使用在线工具测试 SSL 配置安全性
结语
配置 Nginx HTTPS 证书看似复杂，但按照本文的步骤操作，你可以轻松为你的网站或应用启用安全的 HTTPS 连接。记住，安全不是一次性的工作，而是需要持续维护的过程。定期检查证书状态，更新加密配置，监控性能指标，才能确保你的应用始终保持安全可靠。
无论你是使用免费的 Let’s Encrypt 证书，还是购买商业证书，正确的配置都能为你的用户提供安全、快速的浏览体验。结合 Java 应用的适当配置，你可以构建一个完整的端到端安全解决方案。
现在就开始为你的网站启用 HTTPS 吧！
以上就是在Nginx上配置HTTPS证书的完整指南的详细内容，更多关于Nginx配置HTTPS证书的资料请关注脚本之家其它相关文章！
相关文章
本文将介绍Nginx反向代理的基本原理和配置,以及如何利用Nginx实现高可用性和故障转移,最后,我们将探讨如何监控Nginx反向代理的性能并进行日志分析,需要的朋友可以参考下2024-08-08
这篇文章主要介绍了Nginx实现https网站配置代码实例,文中通过示例代码介绍的非常详细，对大家的学习或者工作具有一定的参考学习价值,需要的朋友可以参考下2020-11-11
本文主要介绍了nginx配置多个前端项目实现步骤，文中通过示例代码介绍的非常详细，对大家的学习或者工作具有一定的参考学习价值，需要的朋友们下面随着小编来一起学习学习吧2023-03-03
Nginx是一个高性能的开源Web服务器和反向代理服务器,主要用于高性能的高性能的Web服务器和反向代理服务器,它以其卓越的性能、可扩展性和稳定性而闻名2026-03-03
跨域问题在前后端分离项目很常见,至于为什么会跨域,同源策略,百度各种博客都很详细,这里不再介绍,这篇文章主要给大家介绍了关于Nginx解决vue项目服务器部署及跨域访问后端的相关资料,需要的朋友可以参考下2022-11-11
这篇文章主要介绍了nginx简单配置多个server的方法，文中通过示例代码介绍的非常详细，对大家的学习或者工作具有一定的参考学习价值，需要的朋友们下面随着小编来一起学习学习吧2020-11-11
本文主要使用Nginx和LDAP实现用户认证,通过配置Nginx和安装nginx-auth-ldap模块,可以实现基于LDAP的认证逻辑,下面就来介绍一下,感兴趣的可以了解一下2024-12-12
随着 nginx 越来越流行,并且 nginx 的优势也越来越明显,nginx 的版本迭代也来时加速模式,伴随着 nginx 的广泛应用,版本升级必然越来越快,线上业务不能停,所以本文给大家介绍了Nginx不关机升级(平滑升级)的实战指南,需要的朋友可以参考下2025-09-09
nginx could not build the server_names_hash 解决方法
服务器名字的hash表是由指令 server_names_hash_max_size 和 server_names_hash_bucket_size所控制的。2011-03-03
本篇文章主要介绍了nginx配置静态文件服务器详解，小编觉得挺不错的，现在分享给大家，也给大家做个参考。一起跟随小编过来看看吧2017-08-08
最新评论
